Beelink Mini PC

Beelink was born in 2011, with 10 years of experience in product development, Mini PC and TV BOX products are sold in 100+ countries around the world, and Mini PC products have long been ranked in the top three in a single category on Amazon, Beelink always insists on the spirit of innovation.

Beelink GTR series is the flagship series launched in 2020, the first product is GTR3 3750H, loved by many users, and soon became the official partner of AMD in the field of Mini PC manufacturing in China, but because GTR3 is limited by CPU performance, many gaming users want us to use more powerful CPU, we received the user’s After a year-long design and optimization, the GTR series finally welcomes a new member, the GTR5, with AMD Ryzen9 5000 series super CPU 5900HX, the GTR5 can meet the needs of more users.

Beelink GTR4 Mini PC Works Great for Gaming! Powered by AMD Ryzen 9 4900H! The bare-bones version is only $519!

GTR4 and GTR5 have the same features, configuration, appearance, and use different CPUs.

GTR5 Main features

• AMD Ryzen™ 9 5900HX
• AMD Radeon™ Graphics
• DDR4 3200MHz Dual channel，Max 64GB
• M.2 2280 PCle 3.0 Nvme SSD，Max 2TB
• 2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s)
• Wi-Fi6 and BT5.0 Support
• Support 3 screens 4K60hz, full-featured Type-C
• Dual 2.5Gbps  LAN ports support more industrial uses
• Silent cooling with dual fans and dual ducts
• Built-in dual microphones
• Fingerprint unlock

Why choose GTR5?

Powerful Processor & Graphics

During CES 2021, AMD released the Ryzen 9 5000 series mobile processor 5900HX based on the Zen 3 architecture. The R9-5900HX adopts an 8-core/16-thread and unlocked frequency design. The base frequency is 3.3GHz / the dynamic frequency can reach 4.6GHz. Ensure seamless multitasking and no-delay switching at work, provide the next generation of multitasking experience, and bring processing speed, energy efficiency, productivity, and all-around performance to new heights.

Multi-Core Performance

The R9-5900HX processor achieved a score of 23429 in the PassMark multi-threaded benchmark test. Compared with Apple M1 Max processor, the score gap is very small.

Single-Core Performance

In terms of single-threaded performance, the R9-5900HX improves by 15% relative to the previous generation single-core because of AMD Zen 3 architecture and L3 cache design improvements, outperforming Intel Tiger Lake-U series flagship i9-10980HK.

Smoothly running games

AMD  Ryzen 9 5900HX also integrates AMD Radeon™ / Vega 2100 MHz GPU / 8 compute units to deliver powerful graphics processing power to easily handle the demands of complex design software, UHD video editing, and playback, or light gaming.

In addition, 5900HXthe dual-channel memory controller supports DDR4-3200 MHz and energy-efficient LPDDR4-4266 MHz RAM.

Extremely versatile

GTR5 can meet the all-in-one needs of home, office, education, games, industry, and the Internet.

Including HTPC, NAS, office, high graphics specifications, soft routing, smart home, and home host functions.

2500Mbps Network adapter

The 2.5G network card has a transmission rate of up to 2500Mbps, which is 2.5 times the speed of a gigabit network card and has very low latency. Whether it is e-sports games, webcasting, or office downloads, users can enjoy a faster experience.

WIFI6 & BT 5.0

WIFI6 high-speed wireless network technology, WIFI speed is increased by 1.5 times compared with the previous generation, effectively solving network congestion and data delay, and bringing you a super smooth Internet experience.

Compared with the previous generation Bluetooth 4.2, Bluetooth 5.0 has a longer transmission distance and faster speed. The theoretical effective distance is 300 meters, which means that the mobile devices in the entire family or the entire office can be connected stably. The fastest speed can reach 2Mbps, allowing Bluetooth devices to respond faster and perform better.

Crucial DDR4 3200Mhz RAM

There are currently 16GB and 32GB versions to choose from, 16GB=8*2, 32GB=16*2, the way to form a dual-channel memory releases more CPU performance.

GTR5 uses Crucial DDR4 3200Mhz RAM and supports dual-channel expansion up to 64GB.

Kingston PCIe Nvme SSD

GTR5 has two M.2 2280 SSD card slots, one of the M.2 SSD card slots is PCIe 3.0 4X bus, supports Nvme SSD protocol, and can reach a speed of up to 2GB/S, and the other M.2 SSD card slot is SATA3, The maximum speed can reach 500M/S, you can choose to flexibly choose to match the SSD, and each SSD card slot supports up to 2TB expansion.

GTR5 uses Kingston M.2 2280 Nvme SSD. After testing by technicians, the SSD read and write speed can reach up to 2038Mb/S, and currently.

Upgrade Friendly

2.5-inch SATA HDD (7-9.5mm) Slot×1 (SATA 3.0 6.0Gb/s)

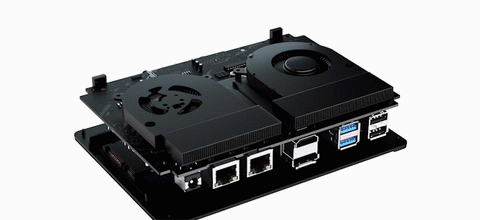

Excellent heat control

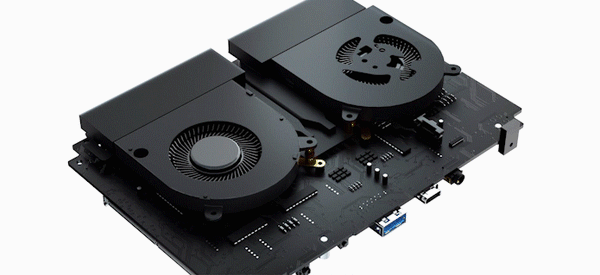

Based on advanced heat dissipation design and actual test optimization, GTR5 is equipped with a professional 5mm pure copper double duct radiator and large-diameter low noise fan, providing efficient heat dissipation and intelligent fan speed control, three-dimensional air circulation heat dissipation, to ensure that the CPU temperature remains safe, thereby Your PC works hard to stabilize the system without crashing or “blue screen of death”.

You can control the fan speed and power profile from the BIOS to achieve efficient thermal management while maintaining excellent noise control to ensure the best experience in every situation.

Reduce the noise

In order to reduce the sound generated by the GTR5 cooling fan, we use a silent level of high-speed fan, as well as an excellent fan speed control system, so do not worry about the fan will generate noise to affect the use.

We tested the GTR5 in the use of different software fan noise situation, running PUBG and LOL and other game programs, 10cm away from the GTR5 test, the highest sound reached 62db, just in the daily almost will not be 10cm away from the use, at a distance of 100cm test the maximum sound of 51db, there will be a slight impact, but not harsh, after opening the game sound, will completely ignore the fan sound, in the tour of the web or watch the video, you will not hear the fan sound.

Rich Ports

Front: MIC*2, Power button*1, CLR CMOS*1, USB-A3.0*1, USB-C 3.0(Data & Video), 3.5mm TRS(HP&MIC).

Back: DC*1 (19v 3.42A), 2.5Gbps RJ45*2, DP1.4*1, HDMI2.0*1, USB-A3.0*2, USB-A 2.0*2.

Abundant ports allow you to add more external devices without worrying about running out of ports for more usage scenarios.

Portable Size

GTR5 whole size of 168mm * 120mm * 39mm, compared with the traditional 30L large host only occupies about 7L, saving 80% of desktop space, for such a powerful PC performance, this size is undoubtedly very small.

Triple Screen 4K60Hz

AMD Radeon™ can meet all your display needs, including support for up to 3 monitors, DP1.2+HDMI2.0+USB-C, each output can drive a 60Hz 4K monitor, making the game more immersive, The workstation is more useful, and you can also improve your work efficiency through multiple displays to meet a variety of purposes, such as stock trading, e-commerce sales, design rendering, etc.

Fingerprint recognition

In the bottom right corner of the top of GTR5, there is a fingerprint unlock module, you can unlock the password set by the system through the fingerprint unlock module, unlocking is very fast and convenient, unlocking time within 1s, to avoid the embarrassment of entering the password to disguise that you do not want to be seen by other people.

Built-in dual MIC array

GTR5 has a built-in dual microphone. The dual microphones form a microphone matrix for more accurate recognition of your voice. You can video voice with your friends through the built-in microphone or wake up Cortana and let Cortana help you schedule your trip, track the status of your delivery or flight information.

Multi-system compatibility

GTR5 comes with Windows 10 Pro (the version with SSD is already activated windows) and can be upgraded to Win 11. In addition, it also supports Ubuntu and Manjaro systems, just select the system you want to enjoy the increased productivity.

Strong and stable

The GTR5 body is made of high-strength, lightweight aluminum-magnesium alloy, making the GTR5 sturdy but avoiding unnecessary weight. It is possible to pack the PC into the bag, which greatly enhances the portability, The top panel is designed with wear-resistant PMMA lenses and a Metal Cooling hole, and the large air inlet mesh allows for more efficient cooling while highlighting the unique design and craftsmanship.

Save desktop space

If your desktop space is limited, you can also install the GTR5 behind the monitor, we will give you a Vesa bracket, installation is very simple，making your PC and monitor become one, saving more space.

Order Beelink GTR5, you can get these accessories for free in the picture below.

Where do we ship to?

We provide free shipping worldwide! However, the listed prices do not include value-added tax and goods and services tax, depending on the country of delivery. The supporter is responsible for paying these fees (value-added tax, goods and service tax, customs duties, taxes, etc.).

The following areas have special logistics needs

Indian orders: Due to the outbreak of the pandemic, orders for shipments to India have been postponed.

Brazil order: Please provide your personal tax number to Beelink.

Russian/Romanian orders: The recipient must be a company with customs clearance capabilities.

Argentine orders: Please consult the local organization before setting up the process before placing the order.

Delivery and after-sales

GTR5 has three warehouses for shipping, one in China, one in the US, and one in Germany.

Orders for EU and US customers are scheduled to start shipping at the end of December, from the US and German warehouses, so as to avoid charges such as customs duties.

All orders from other countries are scheduled to be shipped from China by default on December 22.

We support our products and services with confidence. We provide a one-year warranty for GTR5. If your product has any quality problems during normal use during the warranty period, you can request warranty service by sending an email to support-pc@bee-link.com. We will provide after-sales support in accordance with the after-sales policy.

Please understand that we only accept returns for quality reasons. Any unexcused or unannounced return will be rejected.

All products must be returned in the original box (as far as possible) and all accessories in good condition.

If you receive a damaged or defective product, please contact the Beelink team via email within 30 days of delivery: support-pc@bee-link.com.

When contacting us, please provide your order number.

We provide a free service of global delivery, you can select the memory specification on the checkout page.

This is the third time Beelink has conducted crowdfunding on Indiegogo. With the previous two crowdfunding experience, we have a more complete system for order delivery and after-sales processing, so that your order can be better processed.

Risks and challenges

We are a professional manufacturer of mini PC and TV boxes. We have our own Amazon store, R&D department, and factory, so we have a great advantage in quality control and after-sales service. The purpose of our crowdfunding campaign is to build our brand awareness and connect with computer enthusiasts. Our mini PC is being prepared for final commissioning. We will continue to optimize our products before shipping, so stay tuned.

If this event does not reach its goal, we will deliver normally, so please do not worry.
